- General Information
- Manufacturer
- Vertiv
- Manufacturer Website Address
- http://www.vertiv.com/
- Brand Name
- Liebert
- Product Series
- GXE
- Packaged Quantity
- 1 / Pack
- Product Type
- Double Conversion Online UPS

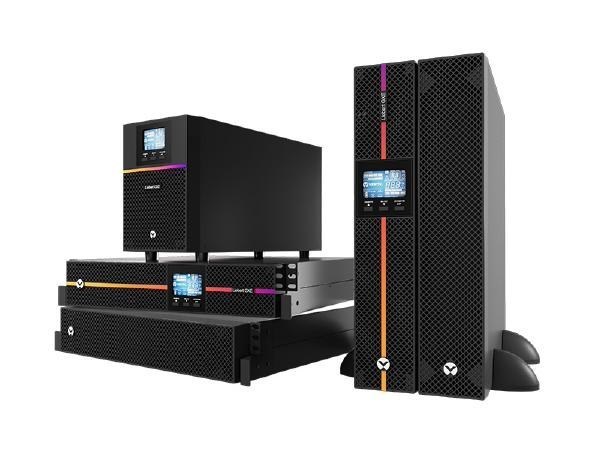

The Vertiv Liebert GXE UPS is an affordable, efficient UPS with high output power factor (0.9PF), which enables continuous and reliable power to more connected devices. With online double conversion, this 3kVA UPS protects devices against many disturbances. It is ideal for critical applications in financial, government, and manufacturing industries. It has flexible rack/tower mounting options. Up to 4 additional external battery cabinets provide scalable runtime for those applications requiring longer period of backup in case of AC mains failures. The high efficiency in both online and ECO modes of operation (up to 95% in ECO mode) for this already affordable UPS further drives energy and operational costs savings. An optional network management card allows remote management and server shutdown. Its extended runtime and multiple monitoring options make this compact UPS ideal for delivering best-in-class power protection to equipment at the edge of networks or in remote sites.
- Warranty
- Limited Warranty
- 2 Year
- Technical Information
- Plug/Connector Type
- IEC 60320 C20
- Receptacle Type
- IEC 60320 C13
- IEC 60320 C19
- Receptacle Detail
- 8 x IEC 60320 C13
- 1 x IEC 60320 C19
- Cord Length
- 1.80 m
- EMI/RFI Noise Filter
- Yes
- Phase
- Single Phase
- Efficiency Detail
- 96% (Eco Mode)
- Application/Usage
- Edge Computing
- Government
- Manufacturing
- Industry
- Critical System
- Server
- Network Closet
- IT Equipment
- Telecommunication
- Education
- Retail
- Surge Suppression
- Yes
- Features
- Audible Alarm
- Power Description
- Load Capacity (VA)
- 3 kVA
- Load Capacity (Watt)
- 2.70 kW
- Input Voltage
- 120 V AC
- 290 V AC
- 230 V AC
- Input Voltage Range
- 110 V AC - 290 V AC
- Output Voltage
- 220 V AC
- 230 V AC
- 240 V AC
- Input Frequency
- 40 Hz
- 70 Hz
- Waveform Type
- Pure Sine Wave
- Surge Energy Rating
- 600 J
- Circuit Breaker
- Yes
- Output Power Factor
- 0.9
- Display & Graphics
- Display
- LCD
- Interfaces/Ports
- Serial Port
- No
- Network (RJ-45)
- No
- USB
- Yes
- EPO Port
- Yes
- Battery Information
- Number of Batteries
- 6
- Battery Characteristics
- Valve-regulated, Non-spillable
- Battery Chemistry
- Lead Acid
- Backup/Run Time (Full Load)
- 3.20 Minute
- Backup/Run Time (Half Load)
- 9.50 Minute
- Battery Life
- 5 Year
- Typical Battery Recharge Time
- 4 Hour
- Hot Swappable
- Yes
- Replaceable Battery
- Yes
- Environmental Conditions
- Minimum Operating Temperature
- 0°C
- Maximum Operating Temperature
- 40°C
- Storage Temperature
- -20°C - 50°C
- Maximum Operating Elevation
- 2 km
- Operating Humidity
- 5% - 95%
- Physical Characteristics
- Color Family
- Grey
- Product Color
- Dark Grey
- Height
- 86 mm
- Width
- 438 mm
- Depth
- 630 mm
- Rack Height
- 2U
- Form Factor
- Rack/Tower
- Weight (Approximate)
- 27.90 kg
- Miscellaneous
- Package Contents
- GXE3-3000IRT2UXL UPS
- Quick Installation Guide
- Safety Instructions
- Adjustable 4-post Rack Mounting Kit
- Rack Mounting Ears & Hardware
- Input Power Cables (UK, AUS, Schuko. 1.8 m)
- 2 x Output Power Cables IEC C13-C14
- USB Cable Type A-B (1.2 m)
- Stabilizing Feet for Tower Configuration (Rack/Tower Models Only)
- Certifications & Standards
- CE
- UKCA
- Morocco
- RCM
- CB report
- EAC
- IEC/EN 62040-1
- Software Included
- Vertiv Power Assist / Vertiv Power Insight
- Country of Origin
- China
- TAA Compliant
- No
- Environmentally Friendly
- Yes
- Environmental Compliance
- Restriction of Hazardous Substances (RoHS)
- Registration, Evaluation, Authorization and Restriction of Chemicals (REACH)
- Waste Electrical and Electronic Equipment Directive (WEEE)
