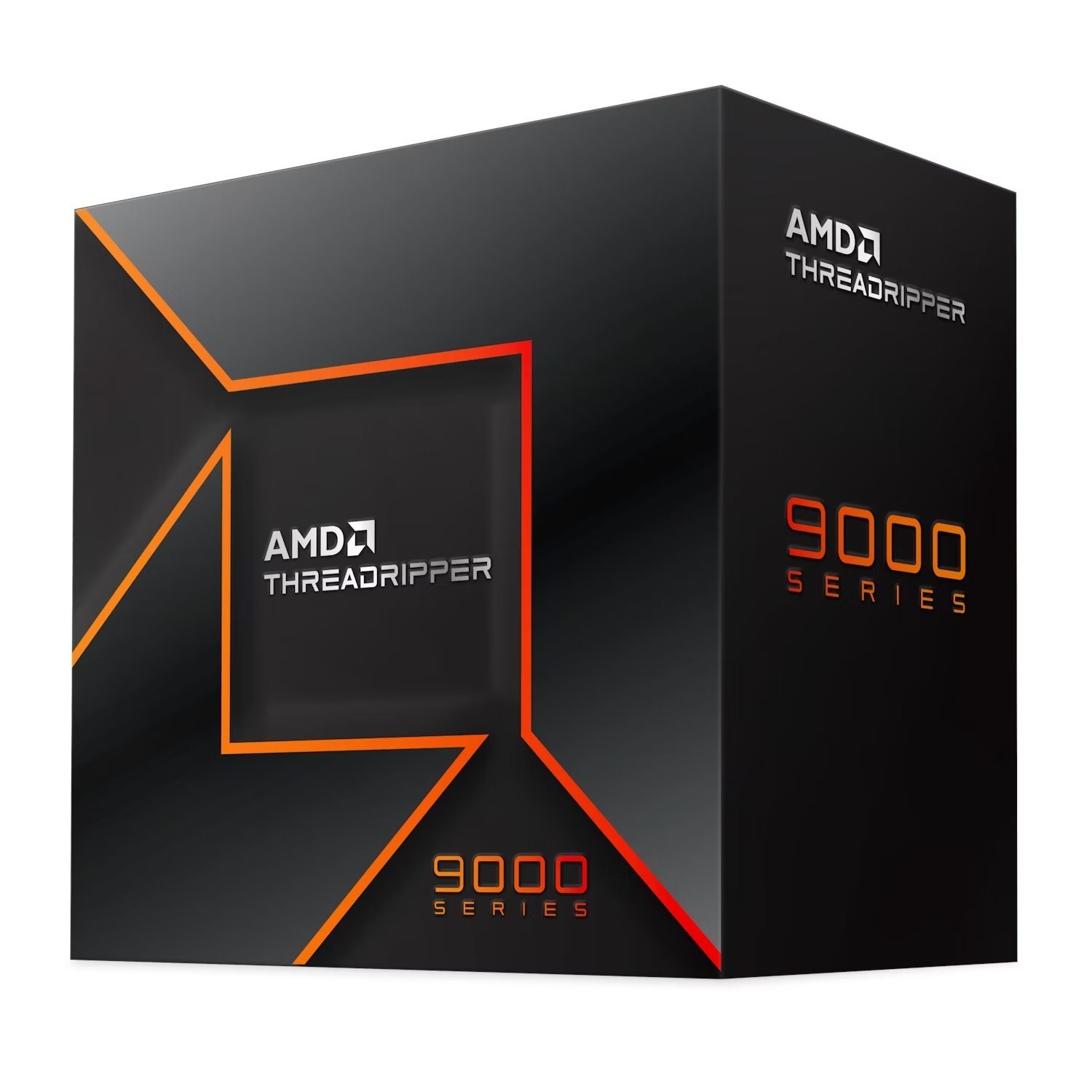

AMD Ryzen Threadripper 9970x, Zen5, 32Cores / 64Threads, Up to 5.4 / 4.0 GHz, PCIe 5.0, 128MB L3, 350W TPD, DDR5-6400 RDIMM, sTR5, TRX50 General Specifications Name AMD Ryzen™ Threadripper™ 9980X Family Ryzen Threadripper Series Ryzen Threadripper 9000 Series Form Factor Desktops Market Segment Enthusiast Desktop AMD PRO Technologies No Regional Availability Global Former Codename Shimada Peak Processor Architecture Zen 5 # of CPU Cores 64 Multithreading (SMT) Yes # of Threads 128 Max. Boost Clock Up to 5.4 GHz Base Clock 3.2 GHz L1 Cache 5120 KB L2 Cache 64 MB L3 Cache 256 MB Default TDP 350W Processor Technology for CPU Cores TSMC 4nm FinFET Processor Technology for I/O Die TSMC 6nm FinFET Package Die Count 9 Unlocked for Overclocking Yes AMD EXPO™ Memory Overclocking Technology Yes Precision Boost Overdrive Yes Curve Optimizer Voltage Offsets Yes CPU Socket sTR5 Supporting Chipsets TRX50 CPU Boost Technology Precision Boost 2 Instruction Set x86-64 Supported Extensions AES , AMD-V , AVX , AVX2 , AVX512 , FMA3 , MMX-plus , SHA , SSE , SSE2 , SSE3 , SSE4.1 , SSE4.2 , SSE4A , SSSE3 , x86-64 Thermal Solution (PIB) Not Included Max. Operating Temperature (Tjmax) 95°C *OS Support Windows 11 - 64-Bit Edition , RHEL x86 64-Bit , Ubuntu x86 64-Bit , Windows 10 - 64-Bit Edition Connectivity Native USB 3.2 Gen 2 (10Gbps) 4 Native SATA Ports 2 PCI Express® Version PCIe® 5.0 Native PCIe® Lanes (Total/Usable) 92 , 88 NVMe Support Boot , RAID0 , RAID1 , RAID5 , RAID10 System Memory Type DDR5 Memory Channels 4 System Memory Subtype RDIMM System Memory Specification Up to 6400 MT/s ECC Support Yes (Default Enabled)
